Leveraging mature thermal vulcanization formulation technology and rigorous full-range quality control, we deliver stable, high-performance Rubber To Metal Bonding Adhesives products for automotive parts, mechanical seals, vibration-damping components, hardware rubber and plastic industries. Our products fully meet industrial-grade high-strength bonding requirements and deliver reliable long-term performance in complex and harsh working conditions.

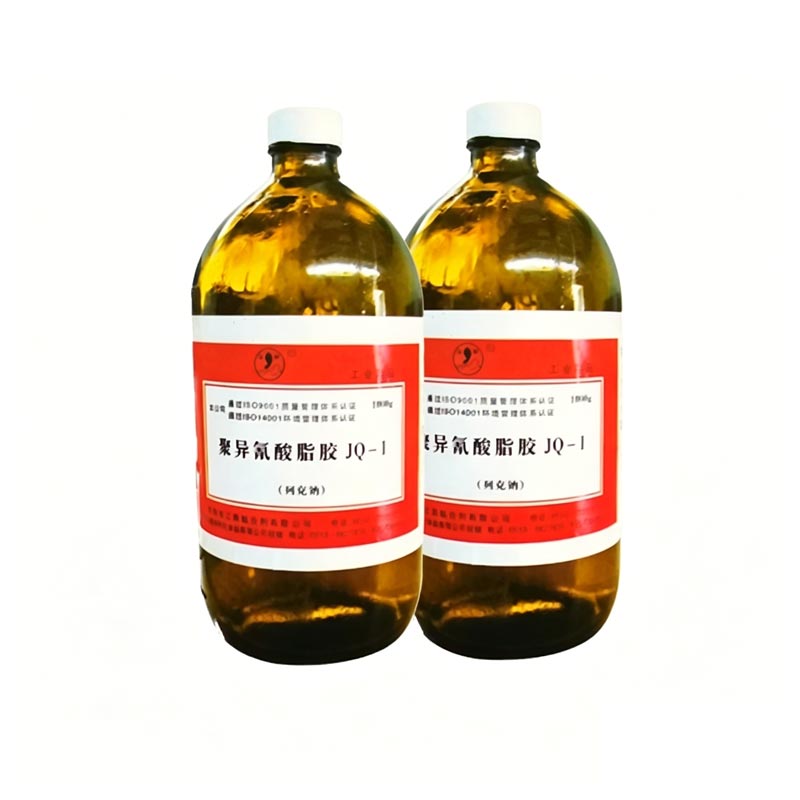

This professional Rubber To Metal Bonding Adhesives is a two-component thermal vulcanization adhesive, uniquely formulated for difficult-to-bond rubber-metal interfaces. It enables robust chemical bonding between mainstream rubber types (natural rubber, nitrile rubber, neoprene rubber, styrene-butadiene rubber, etc.) and common metal substrates including steel, stainless steel, aluminum and iron. Boasting high bonding strength, superior oil and water resistance, excellent thermal aging stability and outstanding peel resistance, this product is widely used in automotive vibration damping components, mechanical sealing parts, rubber-metal hardware accessories and industrial rubber rollers. It serves as a core bonding material for mass production of composite rubber and metal products.
We implement full in-house control over the entire production process, from raw material screening and formula development to finished product testing. We offer small packaging for trial use and industrial bulk packaging to accommodate small-batch trial production and large-scale continuous manufacturing. Meanwhile, we can adjust curing parameters and bonding performance to match customers’ specific production processes.
| Test Item | Technical Index |
| Appearance | Uniform liquid without delamination or visible mechanical impurities |
| Isocyanate Content (where applicable) | Compliant with corresponding product technical specifications |
| Peel Strength (Rubber to Metal) | ≥8 kN/m (Neoprene rubber system) |
| Water Resistance (168h water immersion) | Bond strength retention ≥80%, no debonding or delamination |
Different from ordinary physical adhesion, this adhesive forms stable chemical bonds via thermal vulcanization. It achieves a shear strength of ≥8MPa for rubber-to-steel bonding and a 90° peel strength of ≥40N/cm, effectively solving common industrial pain points such as weak adhesion and interface delamination, and fully meeting high-standard industrial bonding demands.
The product features excellent resistance to oil, water, acid, alkali and thermal aging. After 72 hours of immersion in 120℃ high-temperature oil, the bonding strength retention rate remains above 80%; after 72 hours of immersion in 60℃ hot water, the strength retention rate reaches over 85%. It maintains stable long-term performance in harsh operating environments of automotive and mechanical equipment.
It is compatible with mainstream rubber materials including natural rubber, nitrile rubber, neoprene rubber and styrene-butadiene rubber, as well as multiple metal substrates such as steel, stainless steel, aluminum, iron and galvanized sheets. There is no need to replace adhesives for different materials, which greatly simplifies production processes and improves operational efficiency.
The two components adopt a fixed 1:1 mixing ratio. The vulcanization temperature (140-180℃) and curing time (10-30 minutes) can be adjusted flexibly to adapt to different production equipment. It supports multiple coating methods including brush coating, dip coating and spray coating, perfectly suitable for large-scale industrial mass production.
We enforce strict full-process quality control. Each Rubber To Metal Bonding Adhesives batch undergoes professional tests on shear strength, peel strength and medium resistance to ensure consistent product quality. We support small-batch trial orders and stable large-batch supply, and provide customized formula and packaging solutions based on customer requirements.
A1: This is a two-component thermal vulcanization adhesive. Component A is a brown viscous liquid, and Component B is a pale yellow curing agent liquid, to be mixed at a 1:1 ratio before use.
A2: It adopts thermal vulcanization curing. The recommended curing temperature is 140-180℃ with a curing time of 10-30 minutes. The parameters can be fine-tuned according to rubber types and product thickness.
A3: It bonds various rubbers such as natural rubber, nitrile rubber, neoprene rubber and styrene-butadiene rubber, and fits metal substrates including steel, stainless steel, aluminum, iron and galvanized sheets.
A4: It retains ≥80% strength after 72-hour high-temperature oil immersion at 120℃, ≥85% strength after 72-hour hot water immersion at 60℃, and ≥75% strength after 1000-hour thermal aging treatment at 120℃.
A5: Free product samples are provided. We can customize curing temperature, bonding strength, medium resistance performance and packaging specifications according to customer demands.
A6: We support export business and can provide complete compliant documents including quality inspection reports and MSDS certificates.
With years of in-depth experience in the rubber-to-metal adhesive industry, Changshu Jiangnan Adhesives Co., Ltd. delivers high-performance bonding solutions for automotive parts, mechanical seals, vibration-damping equipment, hardware rubber and plastic industries, backed by stringent quality standards, mature thermal vulcanization technology and professional technical services.
Adhering to quality-centric operation and customer-oriented service, we are committed to providing stable, efficient and cost-effective industrial-grade bonding products. We sincerely look forward to long-term cooperation and win-win development with customers at home and abroad.
